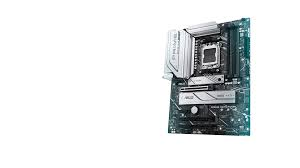

MOTHERBOARD X670-P WIFI SOCKET AM5 ASUS PRIME

AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*
.

AMD X670 Chipset

4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

1 x DisplayPort**
1 x HDMI^® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^® 2.1.

AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot***

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
*** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

1 x Realtek 2.5Gb Ethernet

Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^™ button
1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt^™ (USB4^®) header
