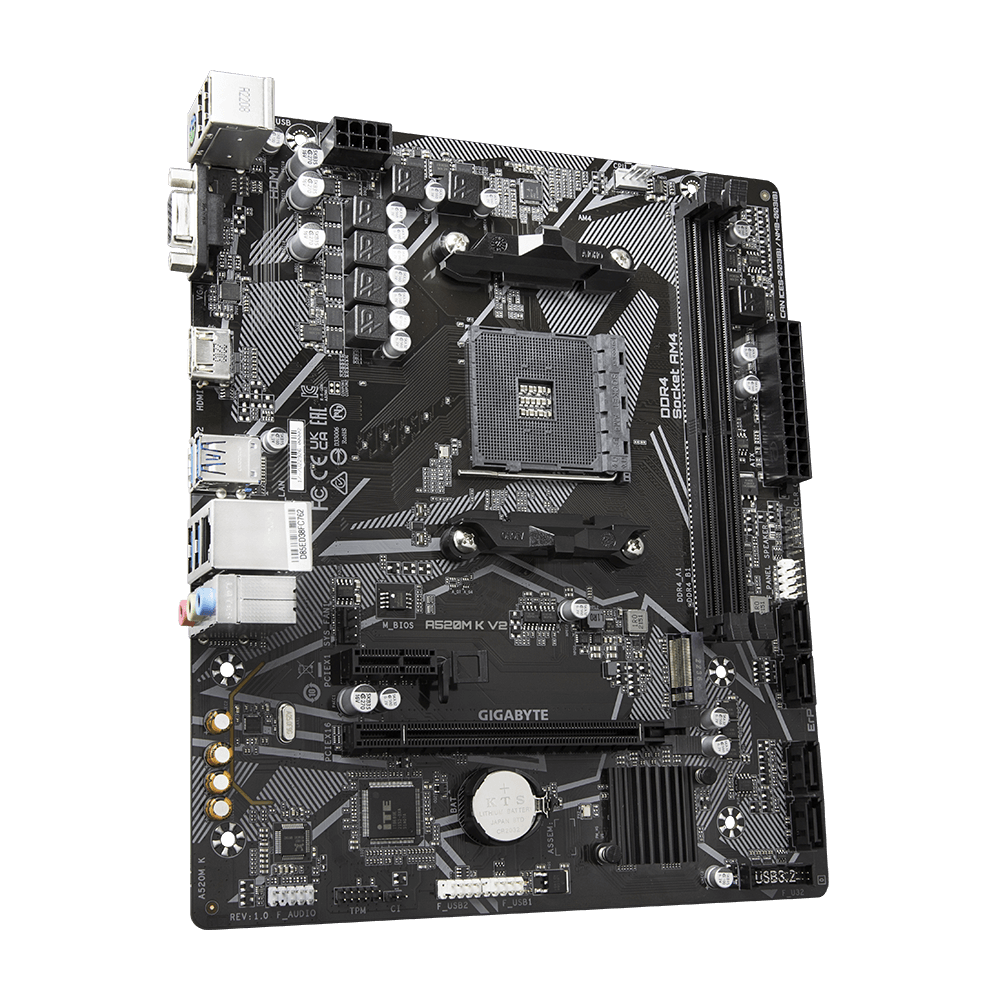

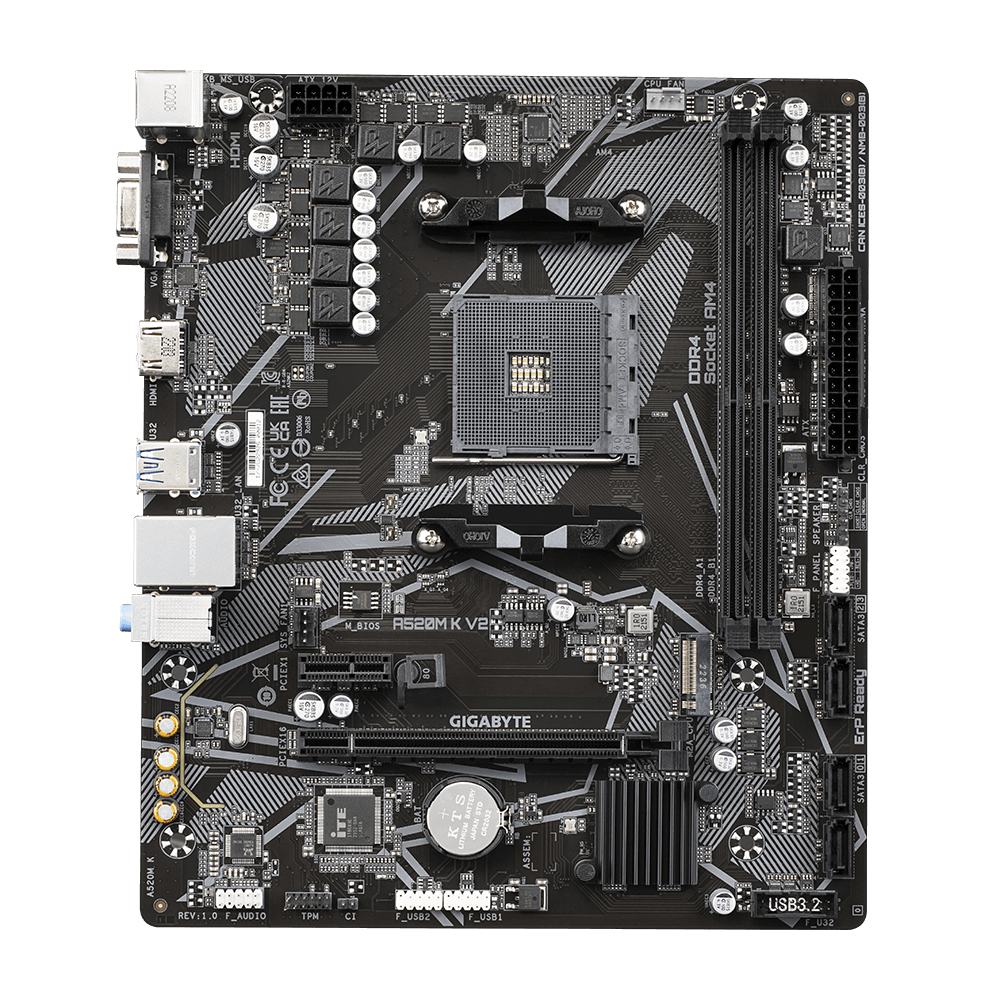

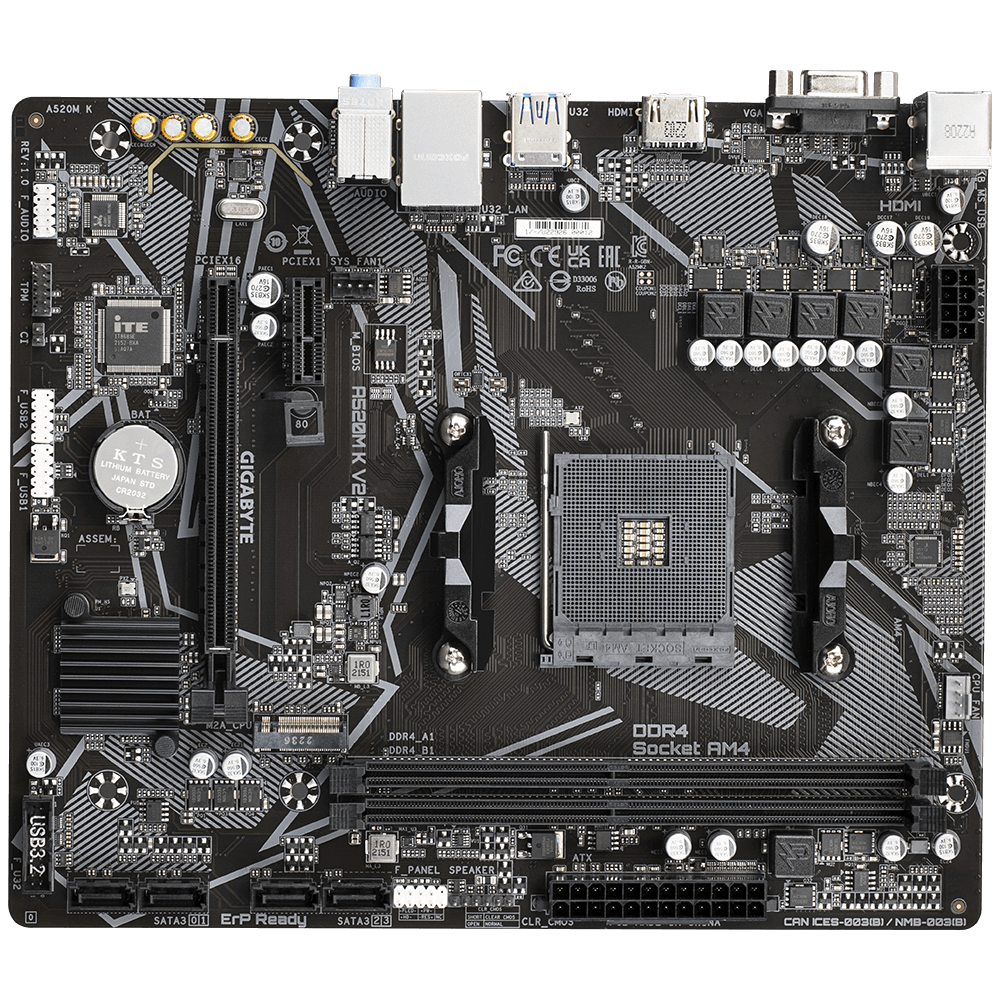

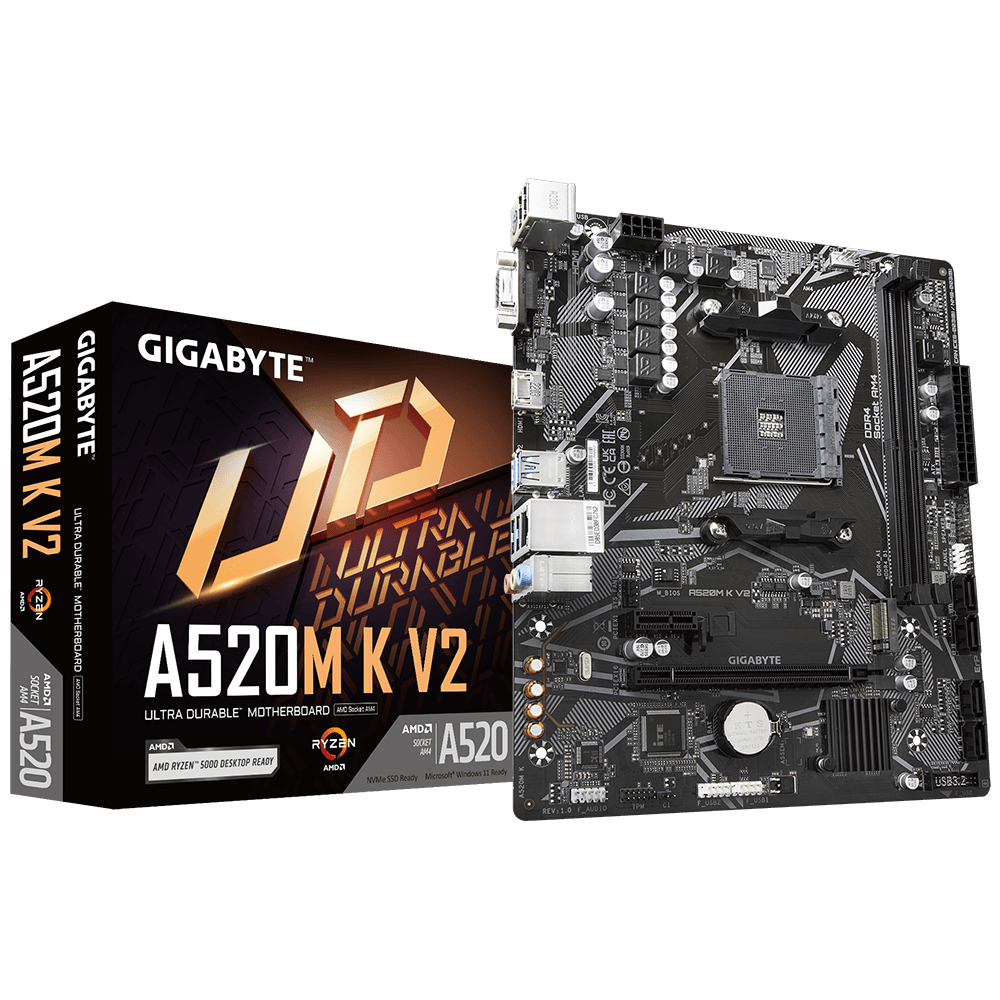

MOTHERBOARD A520M K V2 1.1 Socket AM4 GIGABYTE

Descripción

• Procesador
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Chipset
  1. AMD A520
• 1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     Memoria
• Gráficos Integrados

  Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
• Puertos de Expansión

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Interfaz de Almacenamiento

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, and RAID 10

• USB

  CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos de E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  12. 1 x speaker header
  13. 1 x Clear CMOS jumper
  14. 1 x chassis intrusion header

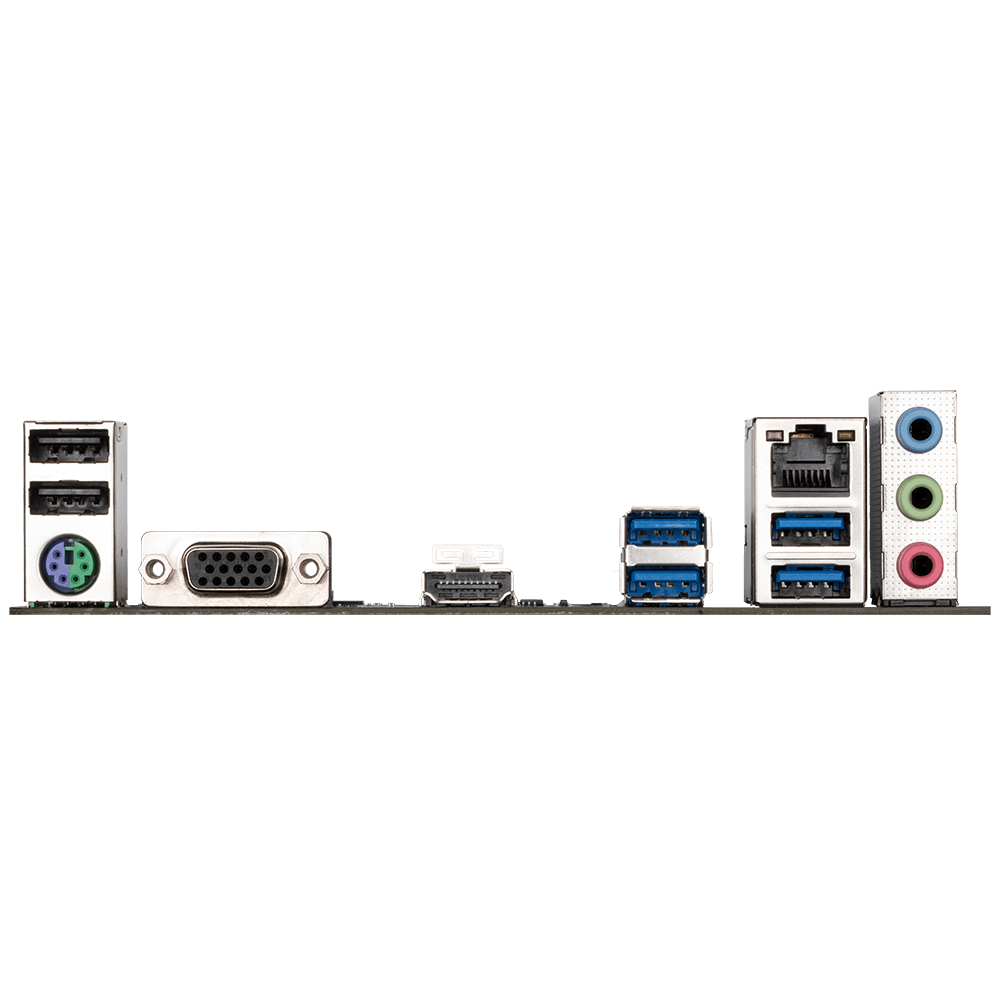

• Conectores del Panel Trasero
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
• Controlador de E/S
  1. iTE^® I/O Controller Chip
• Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
• Software Incluido
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Sistema Operativo
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Diseño
  1. Micro ATX Form Factor; 23.3cm x 19.8cm
