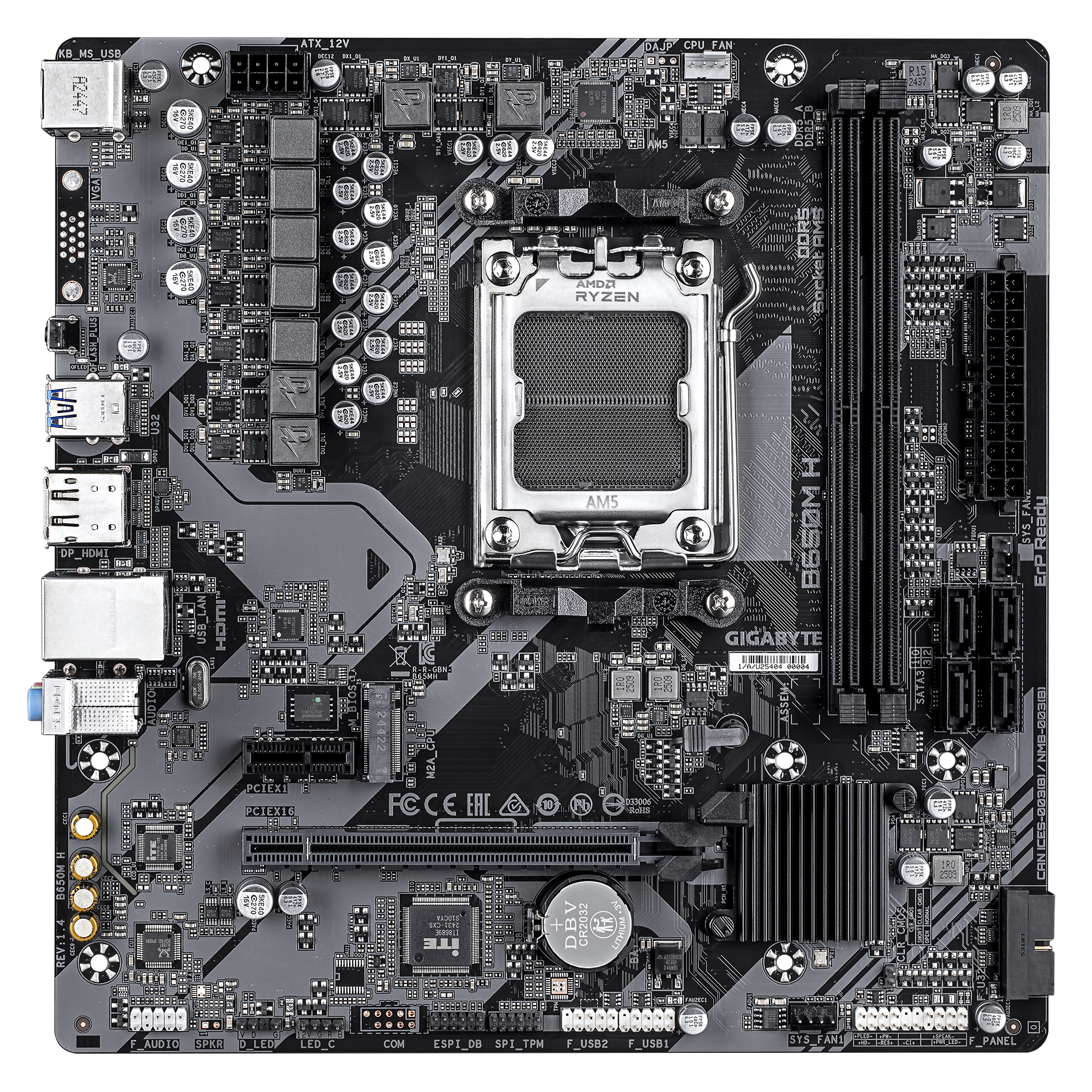

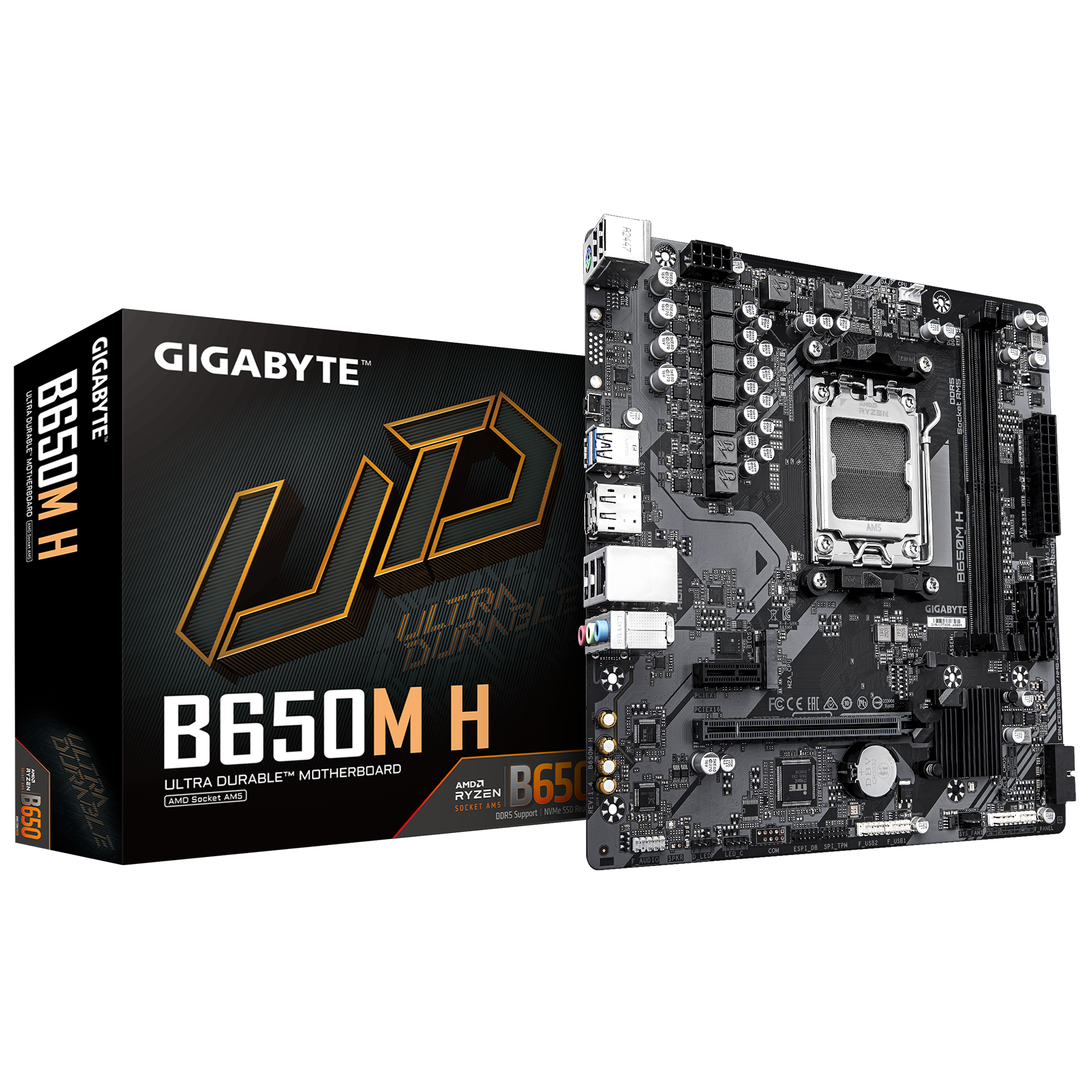

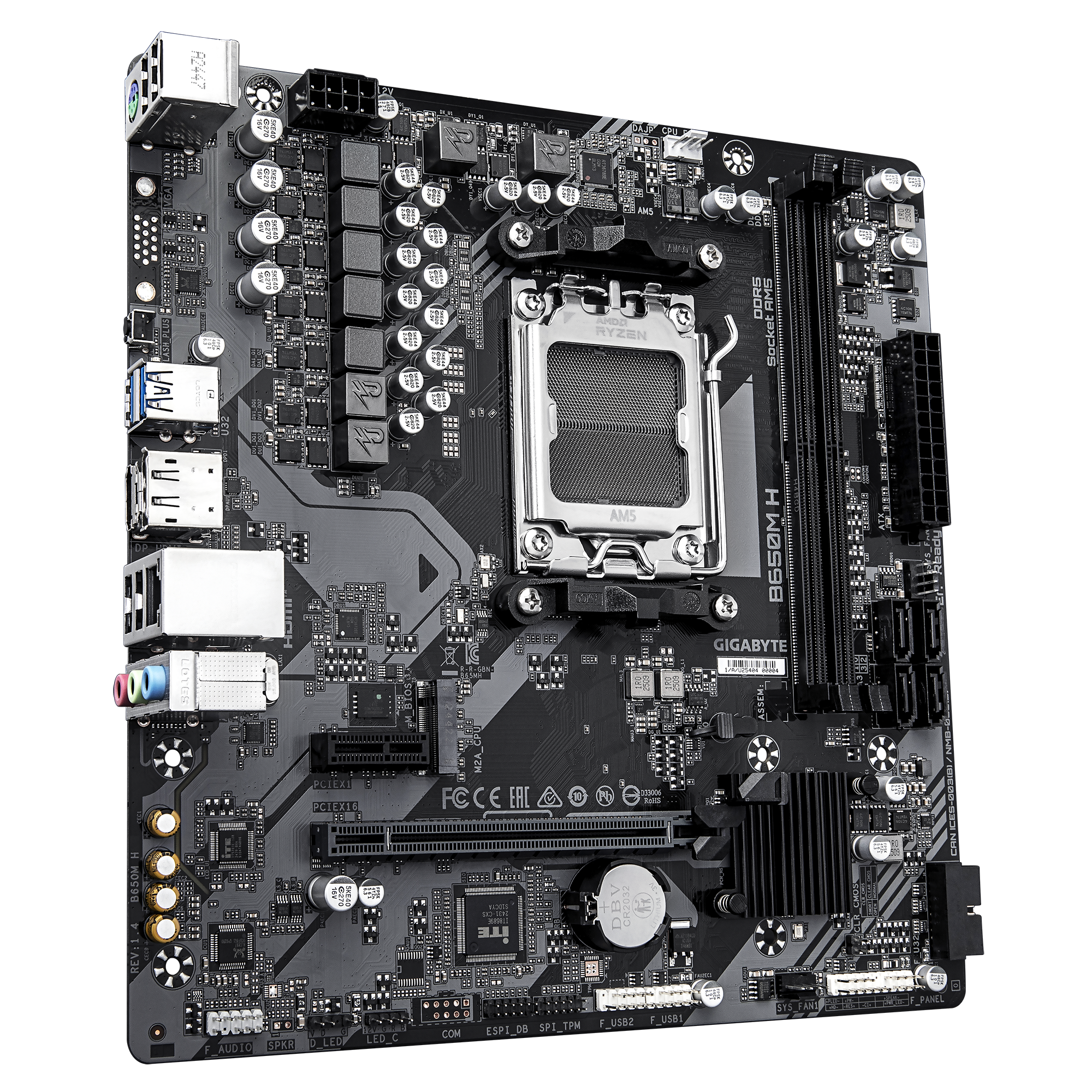

MOTHERBOARD B650M H Socket AM5 GIGABYTE

Descripción

• Procesador
  AMD Socket AM5, support for:
  AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

• Chipset
  AMD B650
• Memoria
  Support for DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,
• Gráficos Integrados
  Integrated Graphics Processor:
  – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 1.4 version.

  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Puertos de Expansión
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
  – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
• Interfaz de Almacenamiento
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
  – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:
  – 2 x USB 3.2 Gen 1 ports on the back panel
  – 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  – 2 x USB 3.2 Gen 1 ports available through the internal USB header
  – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos de E/S
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  1 x Clear CMOS jumper

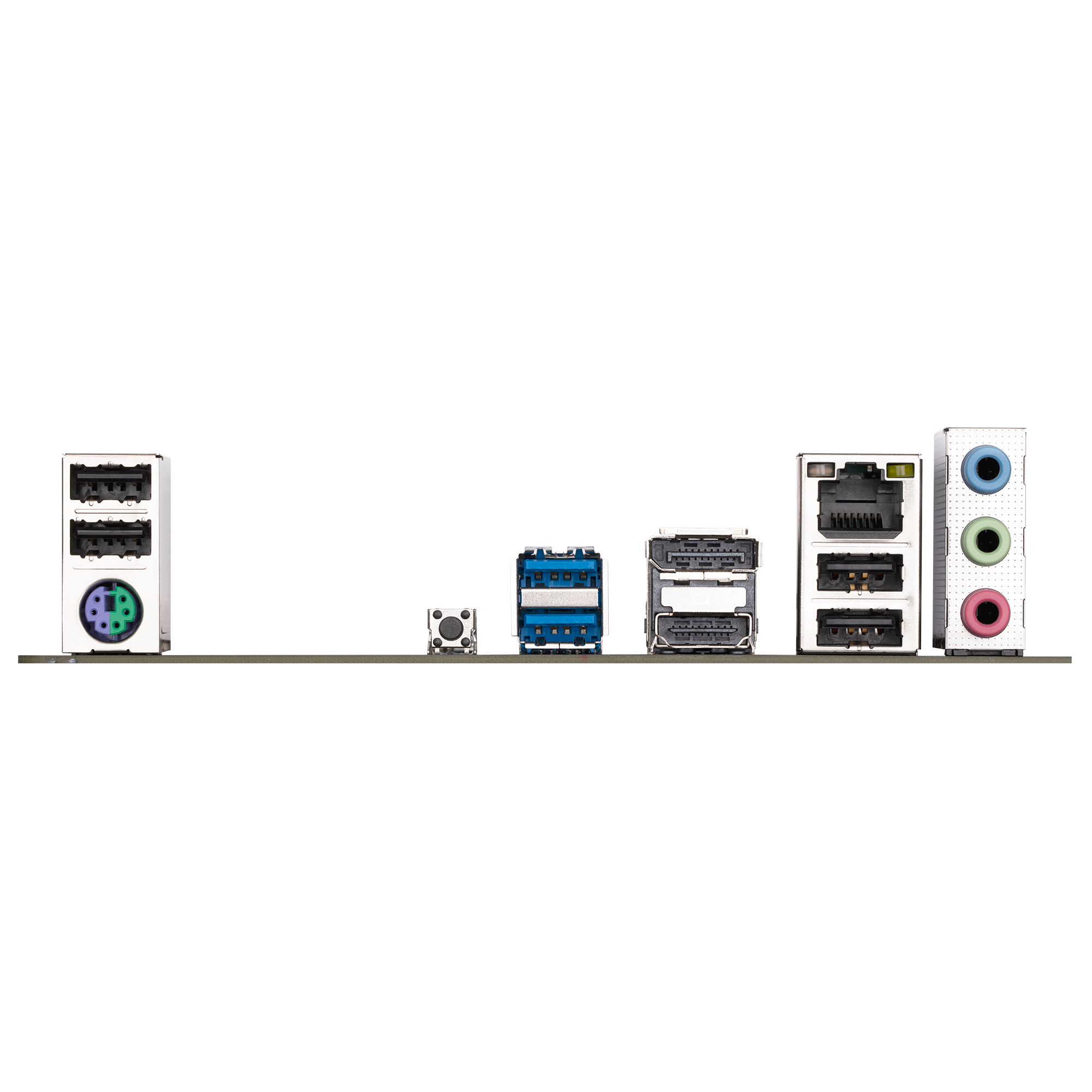

• Conectores del Panel Trasero
  4 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x Q-Flash Plus button
  2 x USB 3.2 Gen 1 ports
  1 x DisplayPort
  1 x HDMI port
  1 x RJ-45 port
  3 x audio jacks
• Controlador de E/S
  iTE® I/O Controller Chip
• Monitorización H/W
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  Support for GIGABYTE Control Center (GCC)
  *

  Support for Q-Flash
  Support for Q-Flash Plus

• Software Incluido
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Sistema Operativo
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Diseño
  Micro ATX Form Factor; 23.0cm x 22.5cm
