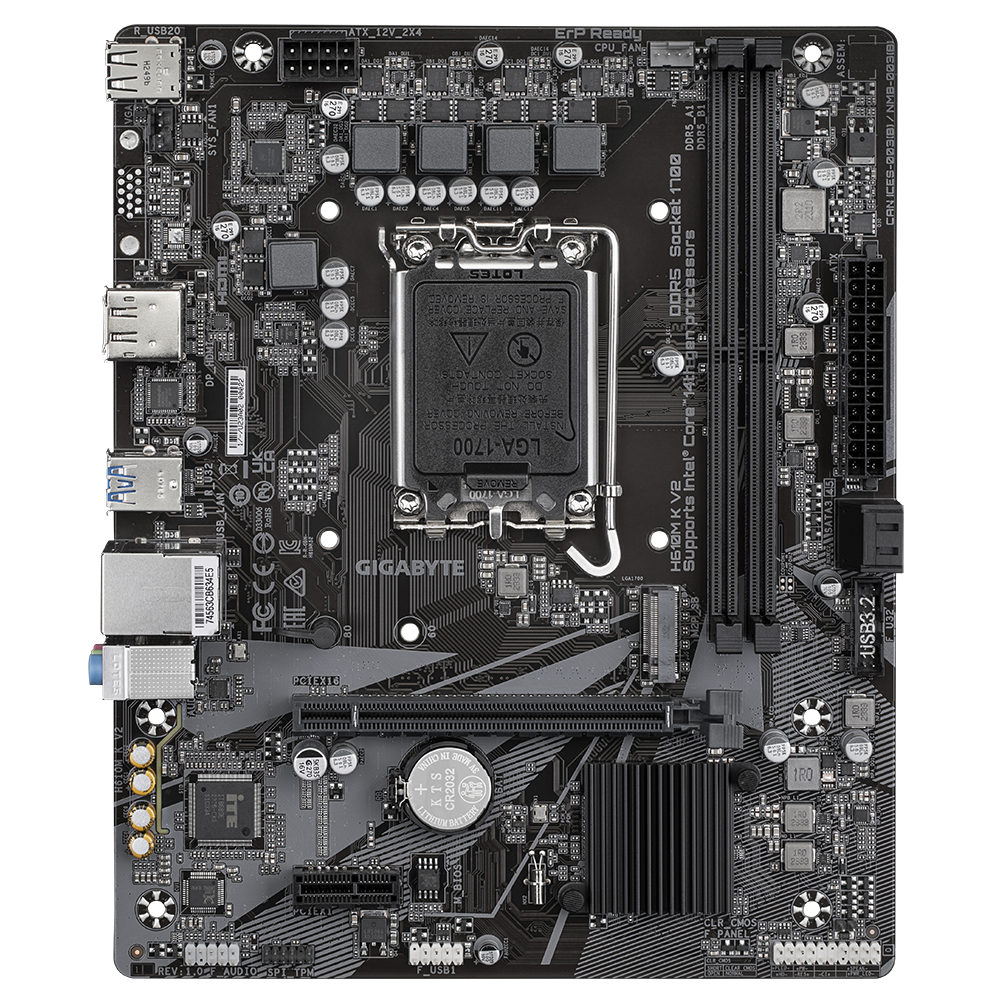

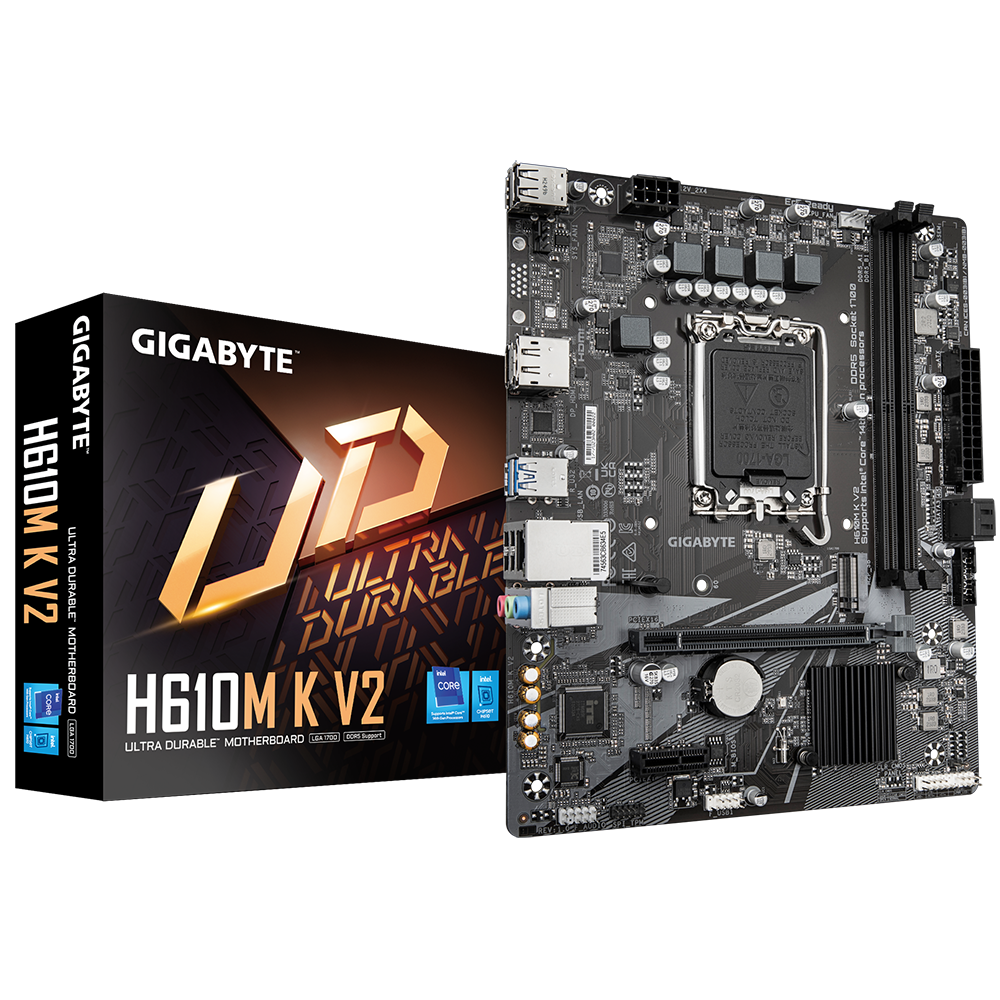

MOTHERBOARD H610M K V2 Ddr5 Socket 1700 GIGABYTE

Descripción

• Procesador
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors

  L3 cache varies with CPU

• Chipset
  Intel^® H610 Express Chipset
• Memoria
  14th and 13th Generation Intel^® Core™ i9/i7 Processors:
  – Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
  – Support for DDR5 4800/4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,
• Gráficos Integrados
  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.

  – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio
  Realtek^® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
• Puertos de Expansión
  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Interfaz de Almacenamiento
  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  – 2 x SATA 6Gb/s connectors
• USB
  Chipset:
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Conectores Internos de E/S
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x M.2 Socket 3 connector
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x Clear CMOS jumper
• Conectores del Panel Trasero
  1 x HDMI port
  1 x DisplayPort
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks
• Controlador de E/S
  iTE^® I/O Controller Chip
• Monitorización H/W
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  – @BIOS
  – EasyTune
  – Smart Backup
  – System Information Viewer
  Support for Q-Flash

• Software Incluido
  Norton^® Internet Security (OEM version)
  LAN bandwidth management software
  * Service discontinued as a result of contract termination by the software provider.
• Sistema Operativo
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Diseño
  Micro ATX Form Factor; 22.6cm x 18.5cm
